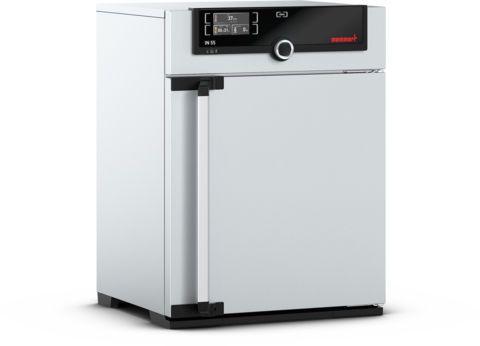

Incubator Memmert IN55

Natural Convection Incubator – 53 L

Key Features:

• Temperature Range: From 5°C above ambient up to +80°C

• Temperature Accuracy: ±0.1°C

• Control System: Digital PID microprocessor with SingleDISPLAY and high-definition TFT color screen

• Sensor: 1 Pt100 sensor (DIN Class A, 4-wire circuit)

• Timer Function: Digital countdown timer, adjustable from 1 minute to 99 days

• SetpointWAIT Function: Ensures timer starts only once target temperature is reached

• Calibration Points: Three user-selectable temperature values

• Adjustable Parameters: Temperature (°C/°F), air flap position, time, time zones, daylight saving settings

• Ventilation: Natural convection with adjustable fresh air admixture in 10% steps

• Vent Connection: With restrictor flap

Programming & Connectivity:

• AtmoCONTROL software for data logging and device management via Ethernet

• USB stick with software available as an accessory

• Built-in data backup in case of power failure

Safety Features:

• Electronic overtemperature monitor

• Mechanical temperature limiter (Class 1 DIN 12880, shuts off ~20°C above setpoint)

• Self-diagnostic system for fault analysis

Design & Construction:

• Chamber Volume: 53 liters

• Interior Dimensions (W x H x D): 400 x 400 x 330 mm

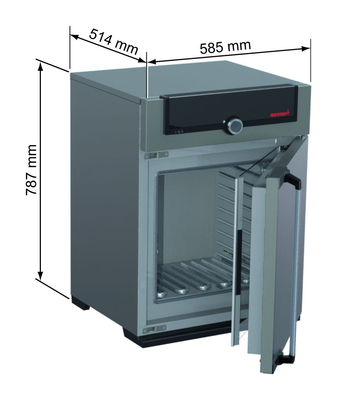

• Exterior Dimensions (W x H x D): 585 x 784 x 514 mm

• Door: Fully insulated stainless steel outer door with inner glass door and 2-point locking

• Interior: Stainless steel, easy-to-clean with ribbed reinforcement and integrated 4-sided heating

• Standard Equipment: 1 stainless steel grid shelf, works calibration certificate at +37°C

Capacity & Loading:

• Max. internals: 4

• Max. chamber load: 80 kg

• Max. load per shelf: 20 kg

Electrical & Shipping Data:

• Power Supply:

  • 230 V, 50/60 Hz, ~1000 W

  • 115 V, 50/60 Hz, ~900 W

• Net Weight: ~57 kg

• Shipping Weight: ~76 kg

• Shipping Dimensions (W x H x D): 730 x 950 x 670 mm

• Country of Origin: Germany

• Customs Tariff No.: 8419 8998

• WEEE-Reg. No.: DE 66812464
