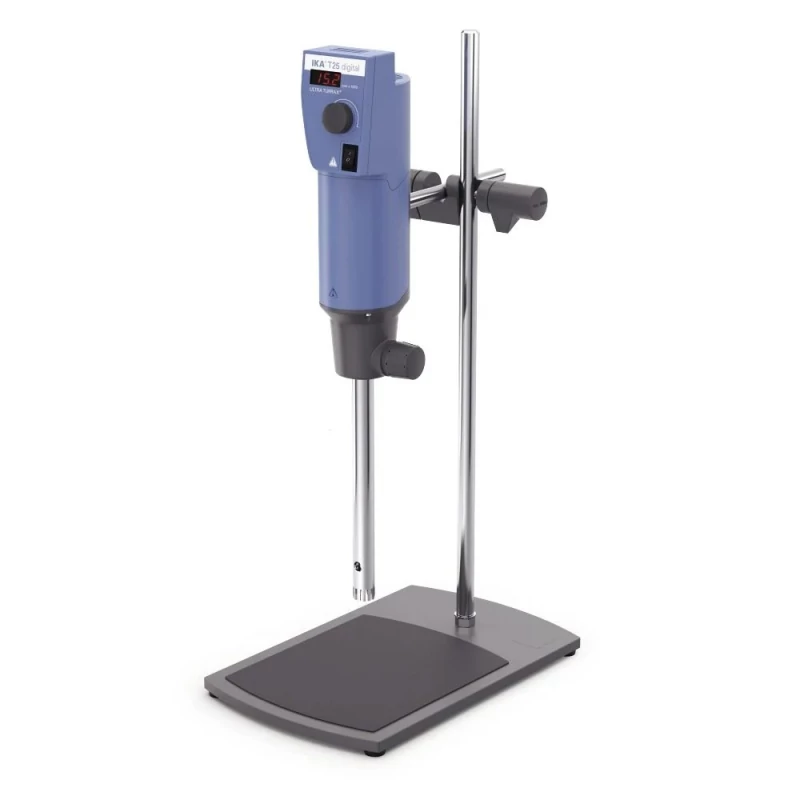

IKA T 25 Digital Package ULTRA-TURRAX®

T 25 Digital Package ULTRA-TURRAX®
High-performance dispersing system for batch processing in laboratories

Package includes:

• 1 × T 25 digital ULTRA-TURRAX disperser

• 1 × S 25 N – 18 G dispersing element, Ø18 mm

• 1 × R1826 plate stand, H800 mm

• 1 × R182 boss head clamp, clamping range Ø6–16 mm

Technical Data

Motor rating input: 800 W
Motor rating output: 500 W
Volume range (H₂O): 0.001 to 2 liters
Maximum viscosity: 5000 mPas
Speed range: 3000 to 25000 rpm
Speed deviation: ±1%
Speed adjustment: stepless
Speed display: LED
Noise level (without element): 75 dB(A)
Extension arm diameter: 13 mm
Extension arm length: 160 mm
Process type: batch
Permissible ON time: 100%
Dimensions (W × H × D): 87 × 271 × 106 mm
Weight: 2.5 kg
Permissible ambient temperature: 5°C to 40°C
Permissible relative humidity: 80% up to 31°C, decreasing linearly to 50% at 40°C
Protection class (DIN EN 60529): IP20
Voltage: 220 – 240 V
Frequency: 50/60 Hz
Power input: 800 W
