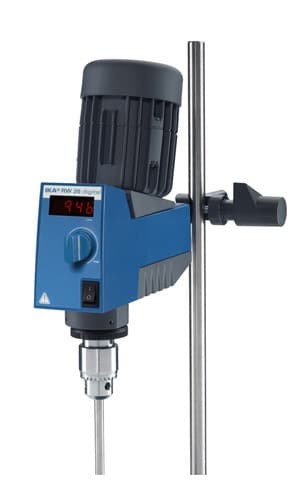

IKA 3593000 RW 20 DIGITAL MECHANICAL OVERHEAD STIRRER

Technical Data

Stirring quantity max. (H2O) [l] 20

Motor rating input [W] 70

Motor rating output [W] 35

Speed display LED

Speed range [rpm] 60 - 2000

Viscosity max. [mPas] 10000

Output max. at stirring shaft [W] 26

Permissible ON time [%] 100

Torque max. at stirring shaft [Ncm] 150

Torque max. at stirring shaft at 60 1/min (overload) [Ncm] 300

Torque max. at stirring shaft at 100 1/min [Ncm] 150

Torque max. at stirring shaft at 1.000 1/min [Ncm] 24

Speed range I (50 Hz) [rpm] 60 - 500

Speed range II (50 Hz) [rpm] 240 - 2000

Speed range I (60 Hz) [rpm] 72 - 600

Speed range II (60 Hz) [rpm] 288 - 2400

Speed control stepless

Stirring element fastening chuck

Chuck range min. diameter [mm] 0.5

Chuck range max. diameter [mm] 10

Hollow shaft, inner diameter [mm] 10.5

Hollow shaft (push-through when stopped) yes

Fastening on stand extension arm

Extension arm diameter [mm] 13

Extension arm length [mm] 160

Torque display no

Nominal torque [Nm] 1.5

Dimensions (W x H x D) [mm] 88 x 294 x 212

Weight [kg] 3.1

Permissible ambient temperature [C] 5 - 40

Permissible relative moisture [%] 80

Protection class according to DIN EN 60529 IP 20

RS 232 interface no

Analog output no

Voltage [V] 220 - 240 / 100 - 115

Frequency [Hz] 50/60

Power input [W] 72

Ident. No. 3593000
